Product Description

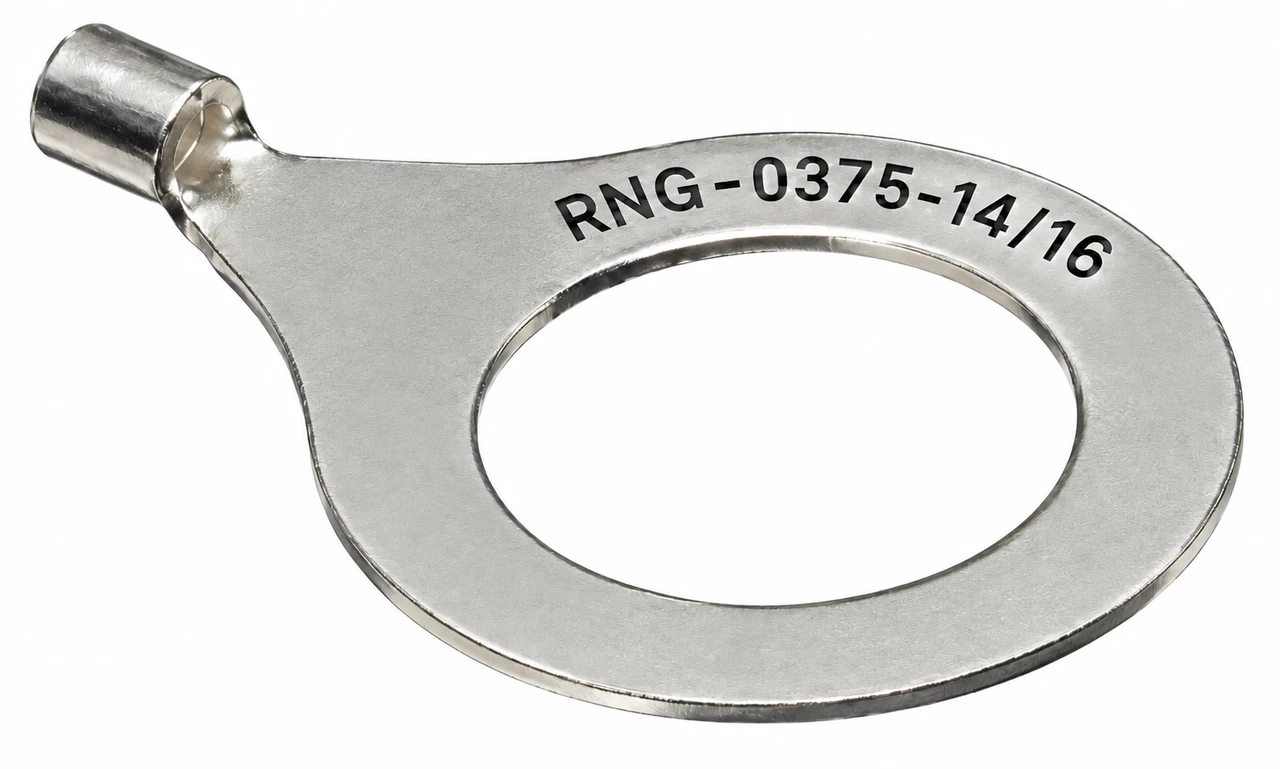

3/8" GROUND LUG RING TERMINAL FOR 3/8"-24 BASE ANTENNAS
The American Radio Supply RNG-0375-14/16 is a high-quality, non-insulated grounding ring terminal designed for use with 3/8"-24 threaded antenna studs and mounting hardware. Constructed from tin-plated copper, this terminal provides excellent electrical conductivity while offering enhanced resistance to corrosion.
The 3/8-inch mounting hole provides a secure connection to antenna bases, studs, posts, and other grounding points. The brazed seam helps prevent the terminal barrel from splitting during crimping, providing a strong and reliable electrical connection—especially in applications subject to vibration.
Key Features
- 3/8" (0.375") mounting hole
- Designed for 3/8"-24 threaded antenna studs
- 14–16 AWG wire range
- Non-insulated ring terminal
- Tin-plated copper construction
- Excellent electrical conductivity
- Corrosion-resistant tin-plated finish
- Brazed seam for added barrel strength
- Suitable for crimping or soldering
- Can be used with heat-shrink tubing for additional insulation and protection
- Well suited for antenna grounding and RF/communications installations
- Ideal for high-vibration applications
Product Specifications
| Part Number | RNG-0375-14/16 |
| Terminal Type | Non-Insulated Ring Terminal |
| Application | Grounding / Electrical Connection |
| Wire Range | 16–14 AWG |
| Stud Size | 3/8" |
| Mounting Hole | 0.375" (3/8") |
| Terminal Material | Tin-Plated Copper |
| Seam | Brazed |
| Terminal Thickness (T) | 0.03" (0.8 mm) |
| Overall Length (L) | 1.00" (25.5 mm) |
| Flange Width (F) | 0.55" (13.9 mm) |
| Width (W) | 0.54" (13.6 mm) |
| Dimension E | 0.19" (4.8 mm) |
| Dimension D | 0.16" (4.1 mm) |
| Dimension D1 | 0.09" (2.3 mm) |
| Ring Outside Diameter (D2) | 0.41" (10.5 mm) |
| Temperature Rating | 150°C |
| Voltage Rating | 600 Volts |
| Maximum Electrical Rating | 30 Amps |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Application Information
Ring terminals provide a secure mechanical and electrical connection by placing the terminal's flat ring surface against a stud, screw, bolt, or post. The connection is particularly useful where vibration could cause a conventional wire connection to loosen.
The RNG-0375-14/16 can be crimped onto stranded wire and may also be soldered when appropriate. Heat-shrink tubing can be added over the terminal barrel to provide additional insulation and environmental protection.
The brazed seam construction strengthens the terminal barrel and helps resist splitting during crimping.
Ideal Applications
- Antenna grounding
- 3/8"-24 antenna mounts and studs
- Mobile radio installations
- Amateur radio equipment
- RF communication systems
- Vehicle antenna installations
- Grounding and bonding applications
- Electrical control and wiring assemblies
- High-vibration electrical connections
- Telecom and wireless equipment
Cross-Reference Information
The following parts have been provided as cross-reference equivalents for comparison:
- 3M: M14-38RX
- Cembre: S2.5-M10
- Elecdirect: R2B38
- McMaster-Carr: 7113K94
- Panduit: P14-38R-C
- Phoenix Contact: 3240096
- Tyco AMP: 34126
Cross-reference numbers are provided for identification and comparison purposes only and do not imply interchangeability or affiliation with the respective manufacturers.
Product Description
RNG-0375-14/16 3/8" Grounding Lug Ring Terminal — 14–16 AWG, Non-Insulated, Tin-Plated Copper
The American Radio Supply RNG-0375-14/16 is a durable 3/8-inch non-insulated ring terminal manufactured from tin-plated copper and designed for 14–16 AWG wire. Its brazed-seam construction provides a strong, reliable connection for grounding and electrical applications, including 3/8"-24 threaded antenna studs. With excellent conductivity, corrosion resistance, and a secure ring-style connection, it is an excellent choice for radio, antenna, automotive, telecom, and general electrical installations.
