Product Description

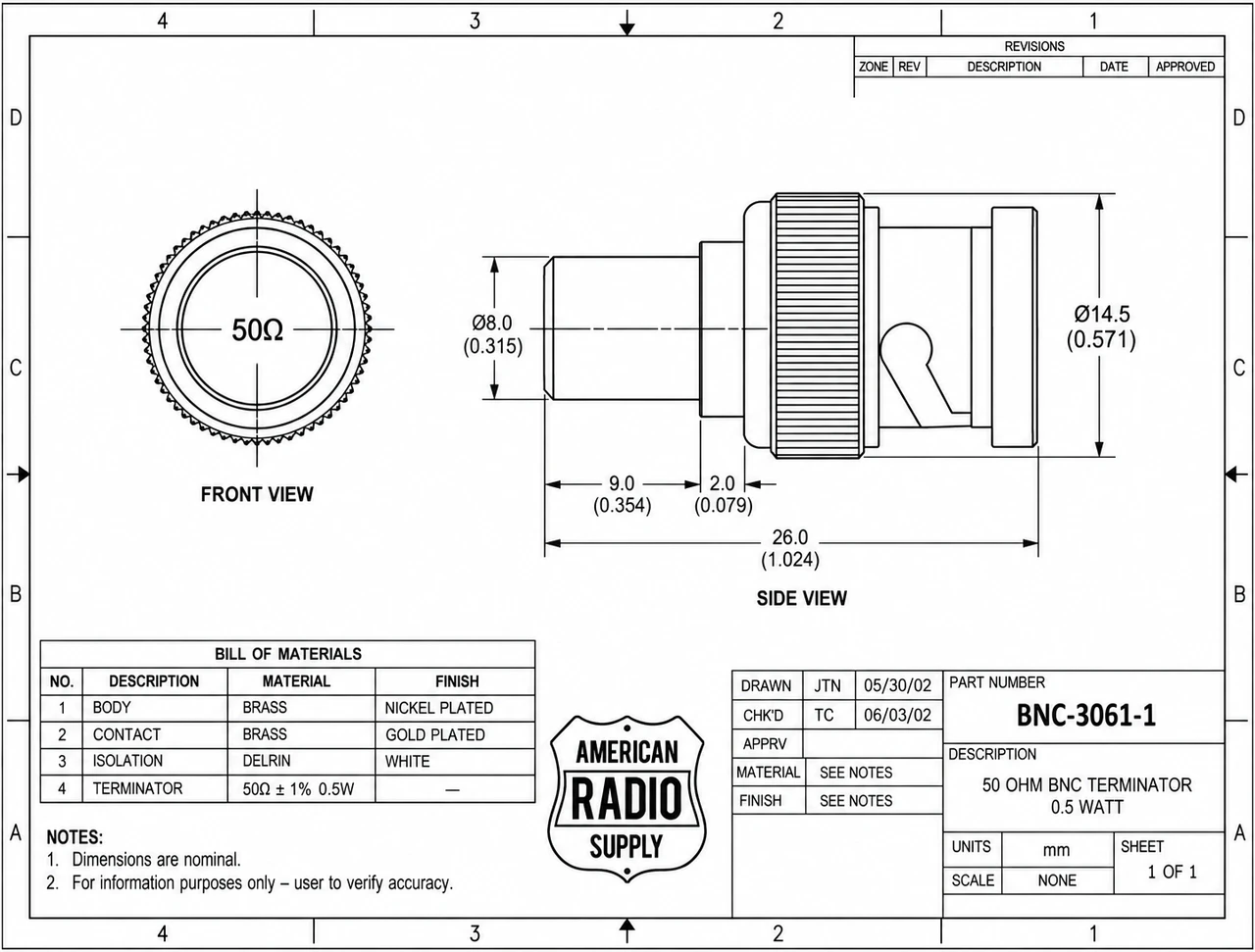

50-Ohm - BNC-Male Coaxial Termination Load ± 1% Tolerance
The BNC-3061-1 is a compact 50-ohm BNC male coaxial termination load designed to provide a defined RF load for coaxial transmission systems. Rated for 0.5 watt average power and specified for operation from DC to 4 GHz, it is well suited for RF test equipment, communications systems, laboratory applications, and low-power transmitter testing.
The termination absorbs RF energy and presents a nominal 50-ohm load, helping prevent the unwanted signal reflections that can occur when an RF port is left open.
Key Features
- 50-ohm nominal impedance
- 0.5-watt average power rating
- DC to 4 GHz frequency range
- BNC male connector
- VSWR: 1.3:1 maximum
- PTFE insulator
- Brass, gold-plated contact
- Nickel-plated brass alloy body
- Gold-plated brass alloy contact
- Compact coaxial termination design
- Suitable for RF test, measurement, communications, and laboratory applications
Specifications
| Part Number | BNC-3061-1 |
| Product Type | BNC Male Coaxial Termination |
| Impedance | 50 Ohms |
| Power Rating | 0.5 Watt Average |
| Frequency Range | DC–4 GHz |
| VSWR | 1.15:1 Maximum |
| Connector | BNC Male |
| Insulator | PTFE |
| Contact | Brass, Gold Plated |
| Body | Gold-Plated Nickel Alloy |
| Shell | Gold-Plated Brass Alloy |
Applications
RF Test & Measurement
Provides a defined 50-ohm termination for RF test equipment, signal generators, spectrum analyzers, network analyzers, and other laboratory equipment.
Unused RF Port Termination
Can be used to terminate unused ports on RF devices, splitters, couplers, adapters, and other coaxial equipment to reduce unwanted reflections.
Transmitter & Amplifier Testing
Provides a 50-ohm load for low-power RF testing where an open output could result in excessive reflected energy.
Communications & Wireless Equipment
Suitable for applications covering VHF, UHF, microwave, cellular, and other RF frequencies within the specified DC–4 GHz range.
