Product Description

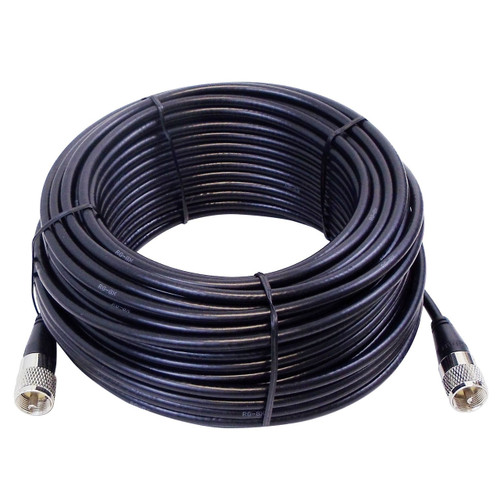

70-Foot - RG8X - PL259 Coaxial Cable Assembly
Our Mini-8 (RG8X) high-quality low-loss coaxial cable assemblies have a UHF-Male (PL-259) connector installed on each end. These cables are factory tested to ensure excellent quality prior to shipping. The cable is flexible, light weight, and slightly larger than than RG58 coaxial cable. Non-Contaminating, UV Resistant, Direct Burial, Black Jacket, and Braided Shield. Polyethylene Dielectric. VP: 78%. Outside Diameter: .242".
- RG-8X
- Impedance: 50-Ohms
- Overall Nominal Diameter: 0.242 Inch
- Connector: UHF-Male (PL-259) Both Ends
- Connectors - Crimped with Strain Relief Boots
- Shield: Bare Copper Braid 95% Aluminum Foil
- Outer Jacket: PVC Type II Non-Contaminating (Black or Gray)
- Center Conductor: Bare Copper 19 Strands 29 Gauge (0.011") 19 Std. (0.287mm)
- Dielectric: Gas Injected Foam 0.155" (3.94mm)
- Velocity: 78%
- Other Lengths Available - Click Here
* Cable may be hanked instead of coiled
Other Details
See warranty details aboveProduct Videos
Custom Field
Product Reviews
1 Review Hide Reviews Show Reviews
-
75 foot RG8X coaxial cable
The cable is of high quality with excellent assembly for the included connectors. I was able to use the cable for my transmitter and have the expected line loss and was through antenna tuning, able to nearly eliminate reflected power in the setup. I have bought RF products form this company before and always been satisfied.
