Product Description

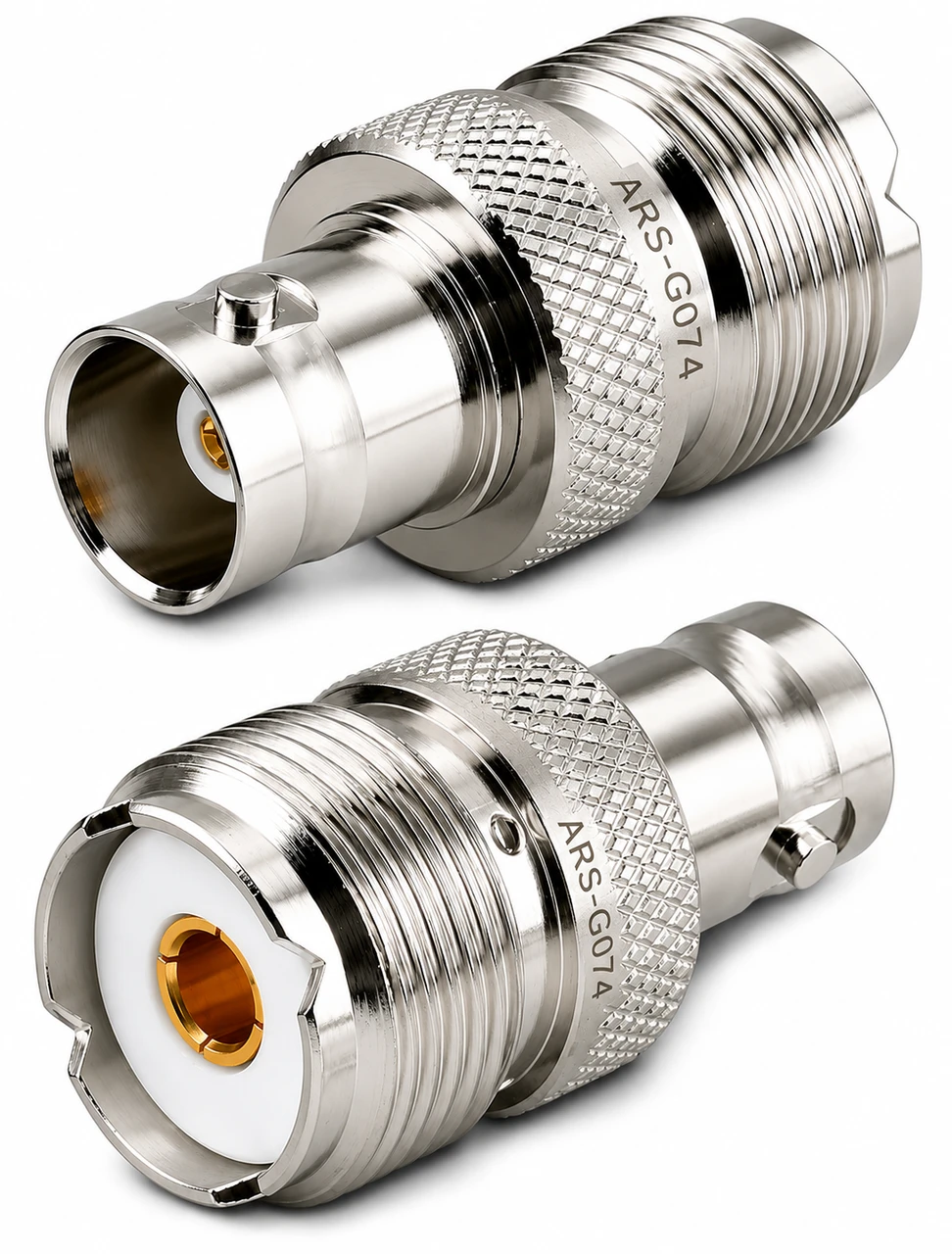

BNC-Female to SO-239 UHF-Female Coaxial Adapter
The ARS-G074 is a BNC Female to UHF Female Coaxial Adapter. It is a compact RF connector designed to join coaxial cables or equipment with different connector types. It features a BNC female jack on one end for connection to a BNC male plug and a UHF female (SO-239) jack on the opposite end for connection to a UHF male (PL-259) plug, providing a convenient solution for adapting RF equipment and cable assemblies.
Key Features
- Impedance: ~ 50 Ohms
- BNC Female Interface: Features a bayonet-style BNC jack for quick, secure push-and-twist connections.
- UHF Female Interface: Uses a threaded SO-239 jack designed to mate with standard UHF Male (PL-259) connectors.
- Durable Metal Construction: Rugged brass alloy body provides mechanical strength and reliable service in RF applications.
- Nickel-Plated Finish: Corrosion-resistant plated exterior provides durability and a clean professional appearance.
- Suitable for standard 50-ohm coaxial cable and RF equipment applications.
- Compact Adapter Design: Provides a simple way to connect equipment and cables using BNC and UHF connector interfaces.
- Wide Range of Applications: Ideal for radios, RF test equipment, signal generators, RF meters, radios, and coaxial cable assemblies.
Common Applications
- Radio: Connects radios, antennas, and feedlines that use different connector types.
- Test Equipment: Adapts BNC-equipped oscilloscopes, signal generators, RF meters, and other equipment to coaxial cables with PL-259 connectors.
- Cable Extensions: Joins two coaxial cable assemblies when one is terminated with a BNC male connector and the other with a UHF male connector.
Other Details
