ARS-G505-600 – PL-259 UHF-Male Coaxial Connector for LMR-600

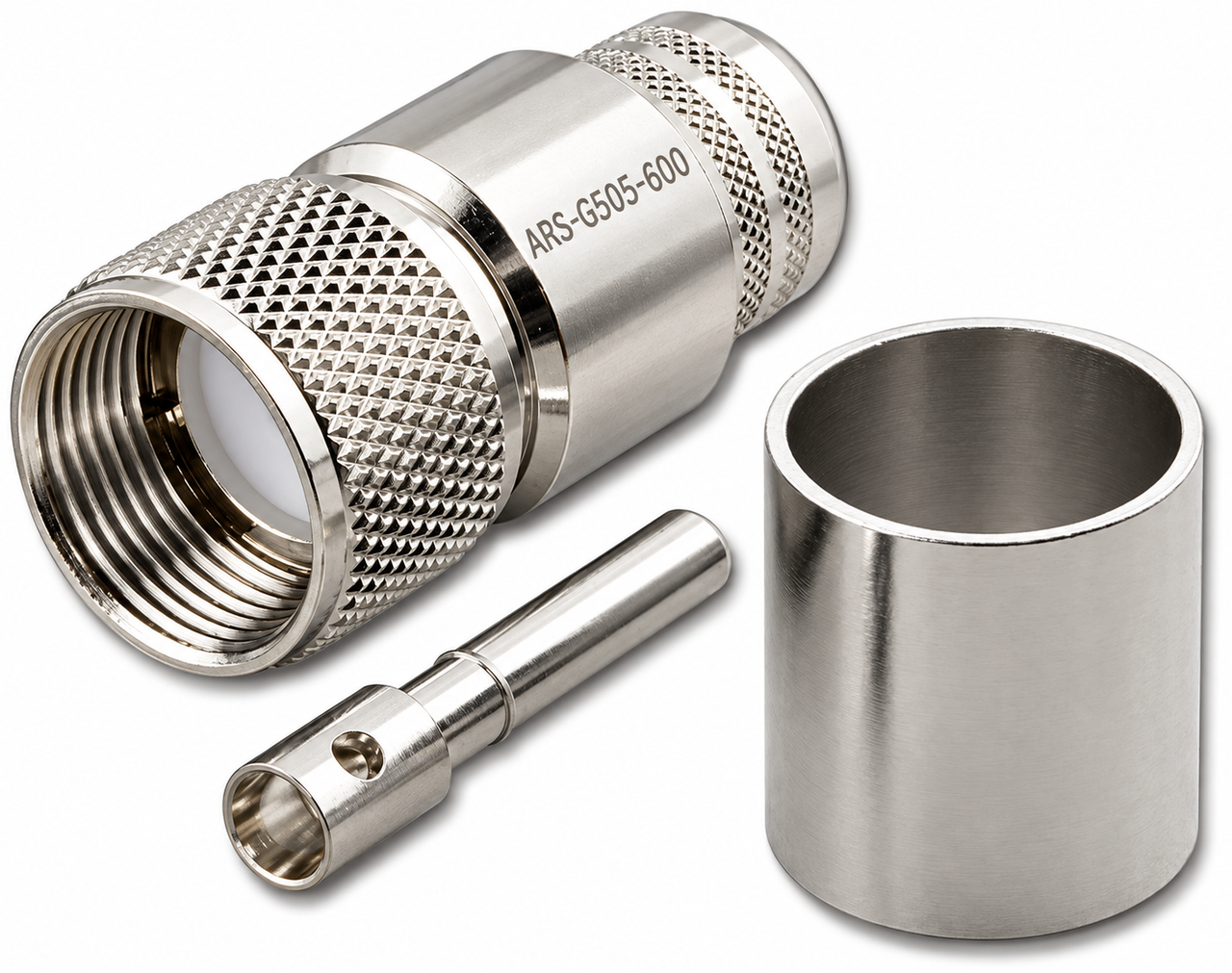

The ARS-G505-600 is a heavy-duty UHF-Male (PL-259) coaxial connector designed for use with LMR-600, LMR-600UF, and similar 50-ohm coaxial cables. Constructed from high-quality silver-plated brass, this straight-body connector provides excellent mechanical strength and reliable RF performance.
The connector features a PTFE (Teflon) insulator and is designed for a crimp/solder installation. Installation is straightforward: prepare the coaxial cable, attach the center pin by crimping or soldering, then crimp the outer ferrule (sleeve) securely over the cable.
Features
- Impedance: 50 Ohms
- Frequency Range: DC to <500 MHz
- Part Number: ARS-G505-600
- Connector Type: UHF Male / PL-259
- Cable Compatibility: LMR-600, LMR-600UF, and similar coaxial cable
- Body Material: Silver-plated brass alloy
- Center Pin: Silver-plated brass alloy - crimp or solder attachment
- Insulator: PTFE (Teflon)
- Body Style: Straight
- Installation: Crimp/Solder

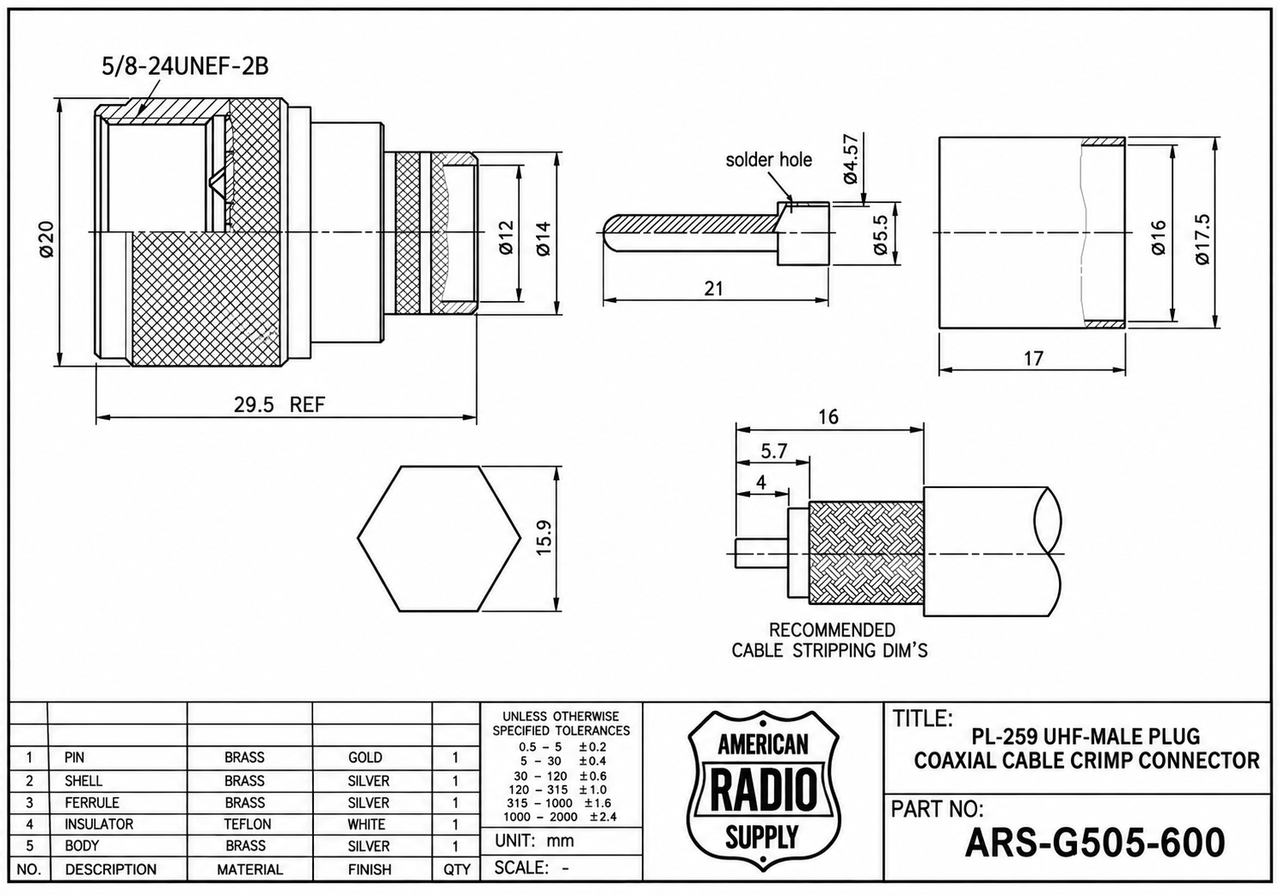

- Designed for approximately 0.590"–0.610" cable outer diameter
Applications
Ideal for connecting LMR-600 and similar large-diameter coaxial cable to UHF/PL-259-compatible radio equipment, antennas, RF systems, test equipment, and communications installations.
Installation
- Prepare and strip the LMR-600 coaxial cable according to the connector dimensions.
- Insert and attach the center conductor to the center pin by crimping or soldering.
- Position the connector body over the prepared cable.
- Slide the outer ferrule into position.
- Crimp the ferrule securely to complete the installation.
