Product Description

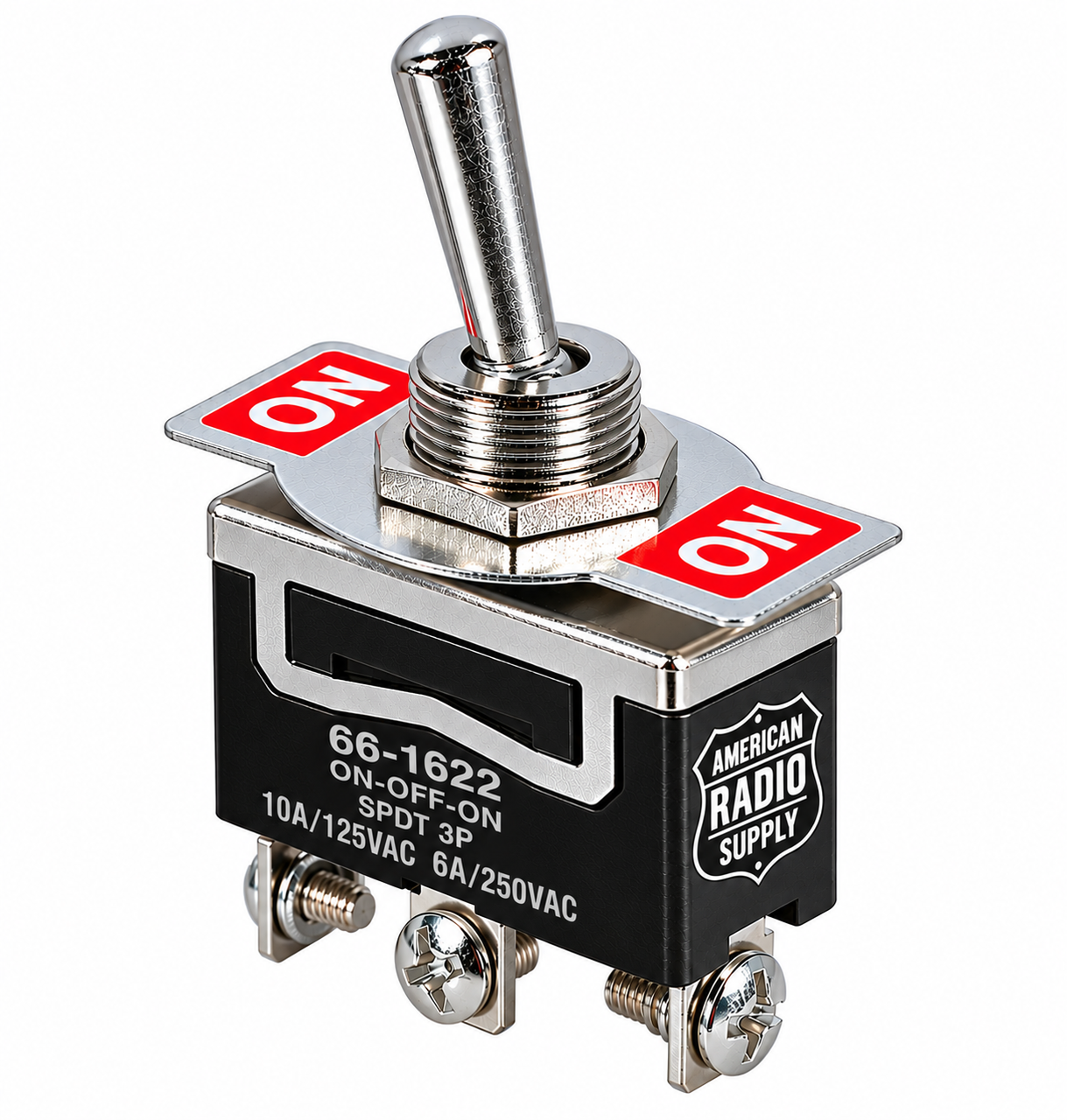

Medium Duty Toggle Switch On/Off/On SPDT 3P 10A 125VAC
The 66-1622 Medium Duty Toggle Switch is a rugged ON-OFF-ON SPDT (Single Pole, Double Throw), 3-terminal toggle switch designed for reliable switching in electrical, electronic, automotive, radio, communications, and general-purpose applications.
The switch features a durable black housing, polished metal toggle lever, threaded mounting bushing, hex mounting nut, and screw-type terminals for secure electrical connections. The ON-OFF-ON configuration provides two independent ON positions with a center OFF position.
Key Features
- Part Number: 66-1622
- Configuration: ON-OFF-ON
- Switch Type: SPDT
- Poles/Terminals: 3P / 3 terminals
- Rating: 10A @ 125VAC
- Rating: 6A @ 250VAC
- Medium-duty construction
- Chrome-plated metal toggle lever
- Threaded panel-mount bushing
- Includes mounting hardware
- Screw-terminal connections
- Includes ON-OFF-ON style nameplate
- Compact design suitable for panel mounting
- Suitable for electrical and electronic equipment
Electrical Ratings
| Configuration | ON-OFF-ON |
| Contact Arrangement | SPDT |
| Rating A | 10A @ 125VAC |
| Rating B | 6A @ 250VAC |
| Number of Terminals | 3 |
Applications
The 66-1622 is suitable for a wide range of applications, including:
- Amateur radio and communications equipment
- Electronic equipment
- Control panels
- Test equipment
- Power supplies
- Automotive and vehicle accessories
- Industrial control equipment
- Lighting and electrical projects
- Custom electronic assemblies
- General-purpose switching applications
Mounting
The switch is designed for panel mounting using its threaded mounting bushing and supplied hardware. The compact rectangular body and three screw terminals make it convenient for installation in equipment panels and custom enclosures.
Product Description
66-1622 Medium Duty ON-OFF-ON SPDT Toggle Switch — a compact, rugged three-terminal toggle switch rated at 10 amps at 125 VAC and 6 amps at 250 VAC, featuring a chrome metal toggle lever, panel-mount threaded bushing, screw terminals, and ON-OFF-ON identification plate.
