Product Description

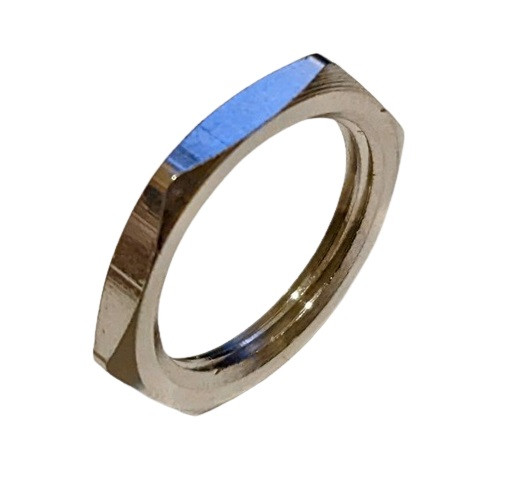

Panel Nut for UHF-Female and Type N-Female Connectors
The ARS-G513 is a 5/8"-24 UNEF precision-machined coaxial connector hex nut designed for use with SO-239 (UHF-female) and Type N-female bulkhead connectors. Manufactured from durable nickel-plated brass alloy, it provides a secure mechanical connection for panel-mount RF connectors while offering excellent resistance to corrosion and wearKey Features
- Standard 5/8"-24 UNEF Thread: Designed to match compatible SO-239 and Type N-female bulkhead connector mounting threads.
- Precision-Machined Construction: Manufactured for accurate thread engagement and reliable connector installation.
- Nickel-Plated Brass Alloy: Provides a durable, corrosion-resistant finish suitable for RF and electronic equipment applications.
- Hex-Style Design: Allows easy tightening with a standard wrench or nut driver.
- Secure Panel Mounting: Helps firmly retain bulkhead-style RF connectors in equipment panels, enclosures, and mounting plates.
- RF Connector Compatibility: Commonly used with UHF/SO-239 female and Type N-female bulkhead connectors.

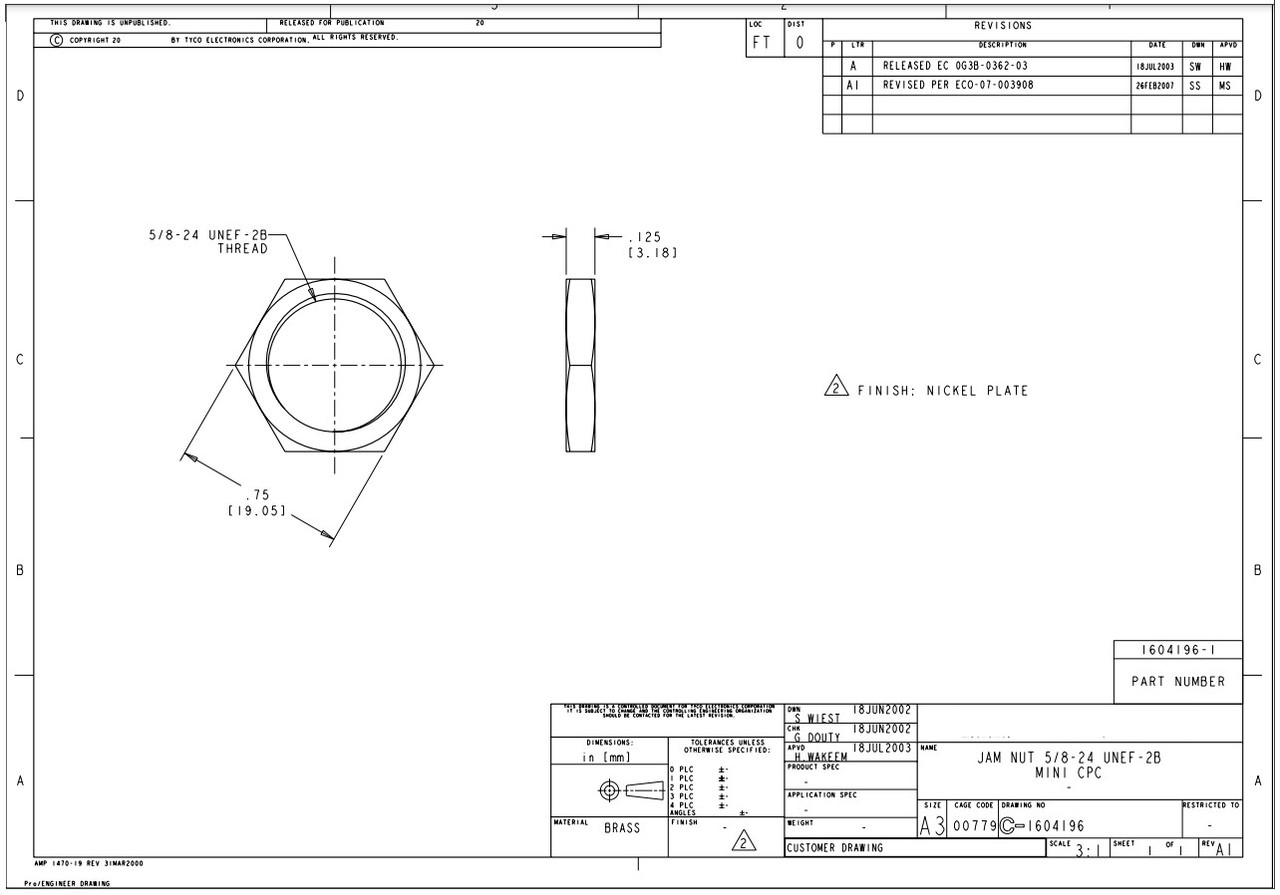

Specifications
Thread Size: 5/8"-24 UNEF
Thread Class: UNEF-2A
Material Machined Brass Alloy: Finish Nickel Plated
Nut Thickness: 0.125-Inch
Hex Size: 3/4-Inch - ~ 19 mm
Application: SO-239 & Type N-Female Bulkhead Connectors
Other Details
See warranty details aboveProduct Videos
Custom Field
Product Reviews
2 Reviews Hide Reviews Show Reviews
-
Top Quality
This is my first purchase from American Radio Supply. I was most impressed with the price and the fast shipping. The fit and finish on these panel nuts are top quality as well. I will likely be buying more in the future.
-
★★★★★
Just the nuts are what I needed to finish my radio project.
