Product Description

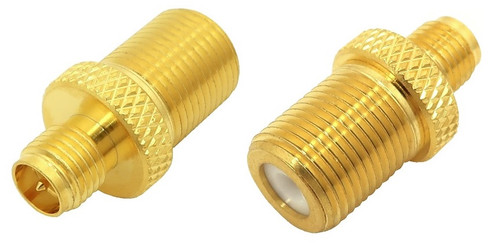

RP-SMA-Female to Type F-Female Coaxial Adapter Connector
The ARS-H523 RP-SMA Female Jack to Type F Female Coaxial Adapter provides a convenient way to connect equipment with an RP-SMA interface to standard F-type coaxial cabling. This compact, precision-machined adapter is ideal for applications where two different RF connector standards need to be interfaced without modifying existing cables or equipment.
Key Features
- Connector A: RP-SMA Female Jack — Reverse-polarity SMA male interface with internal threads and a center receptacle
- Connector B: Type F Female — Female F-type interface designed to mate with standard F-type male connectors
- Impedance: Interfaces between 50-ohm RP-SMA and 75-ohm F-type systems
- Construction: Precision-machined metal body with a durable gold-plated finish
- Contacts: Designed for reliable RF electrical continuity
- Threaded Coupling: Provides a secure connection resistant to accidental loosening
- Compact Design: Easy to install in tight equipment and cable assemblies
- Frequency Range: Typically suitable from DC through several GHz, depending on the connected components and system configuration
Common Applications
The adapter is useful for connecting Wi-Fi equipment, wireless networking hardware, antennas, RF equipment, broadband equipment, modems, routers, and test equipment that use incompatible RP-SMA and F-type interfaces.
It can also be used to adapt an F-type coaxial cable for connection to equipment equipped with an RP-SMA port, making it useful for antenna extensions, RF signal routing, broadband installations, and specialized wireless applications.
Important Compatibility Notes
RP-SMA and standard SMA connectors are not interchangeable.
RP-SMA = Reverse Polarity (Pin)
RP-SMA-Male = Has a female center contact not a male pin contact.
