RP-TNC Male Plug Crimp Connector for LMR-240 / RG-8X Coaxial Cable
The ARS-H900-L240 is a straight RP-TNC male plug crimp connector designed for terminating 50-ohm LMR-240, RG-8X (Mini-8), and similar 0.240-inch O.D. coaxial cables. The connector provides a secure mechanical connection while maintaining reliable RF performance for wireless, radio, and communications applications.
Key Features
- Part Number: H900-L240
- Connector Type: RP-TNC Male Plug
- Polarity: Reverse Polarity (RP-TNC)
- Impedance: 50 Ohms
- Body Style: Straight
- Cable Attachment: Crimp ferrule
- Cable Compatibility: LMR-240, RG-8X (Mini-8), and similar 0.240-inch O.D. coaxial cable
- Body: Nickel-plated brass alloy
- Center Contact: Gold-plated contact
- Insulator: PTFE
- Application: RF coaxial cable termination and jumper assembly
Applications
The ARS-H900-L240 is suitable for wireless networking equipment, Wi-Fi systems, antennas, routers, radio equipment, RF jumper cables, cellular accessories, and other 50-ohm communication systems where an RP-TNC connection is required.
Installation
The connector is designed for crimp termination, using a crimped outer ferrule to secure the coaxial cable. Proper cable preparation and the appropriate crimp tooling should be used to ensure reliable mechanical retention and RF performance.

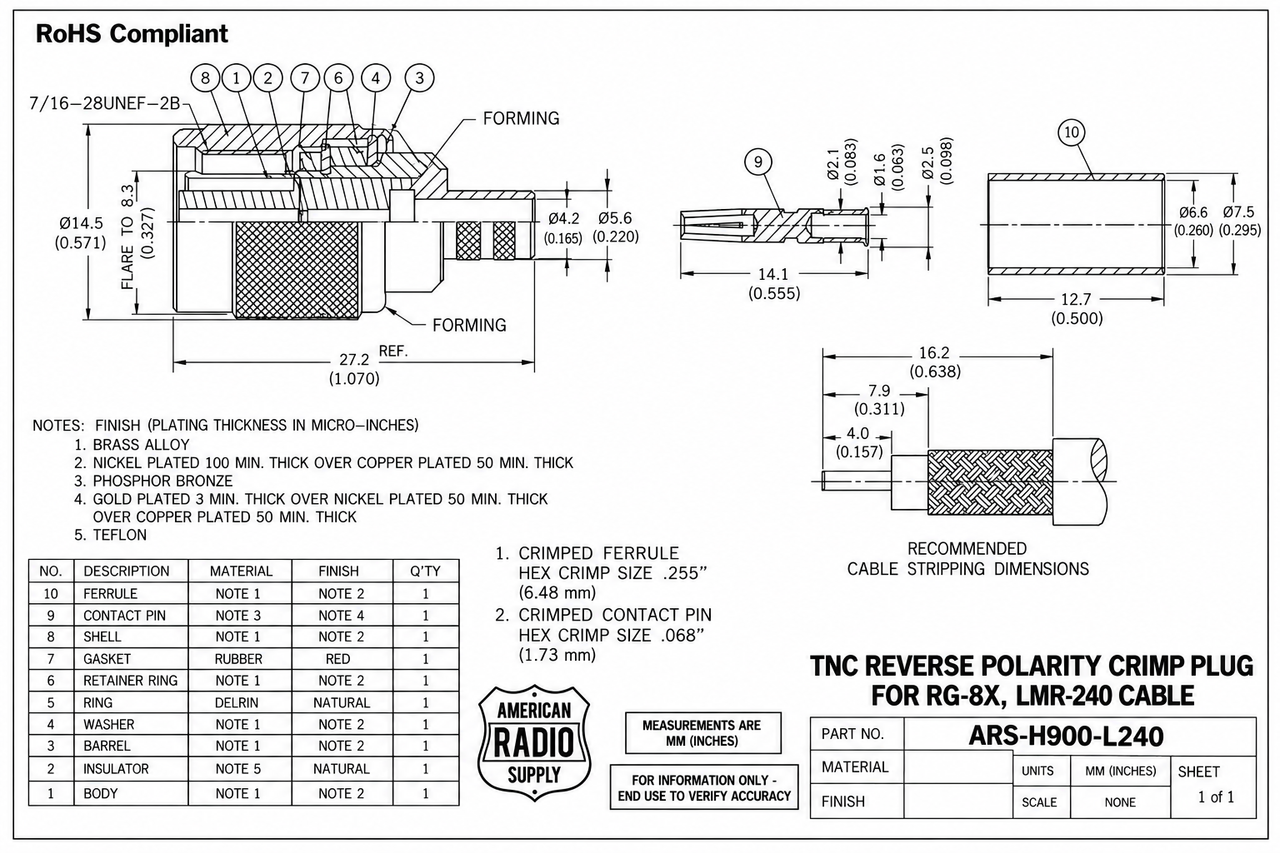

Note: Actual maximum operating frequency can vary with connector construction, cable type, and installation. For this ARS-H900-L240 configuration, the accompanying drawing should be used for the applicable mechanical dimensions and termination details.
