Product Description

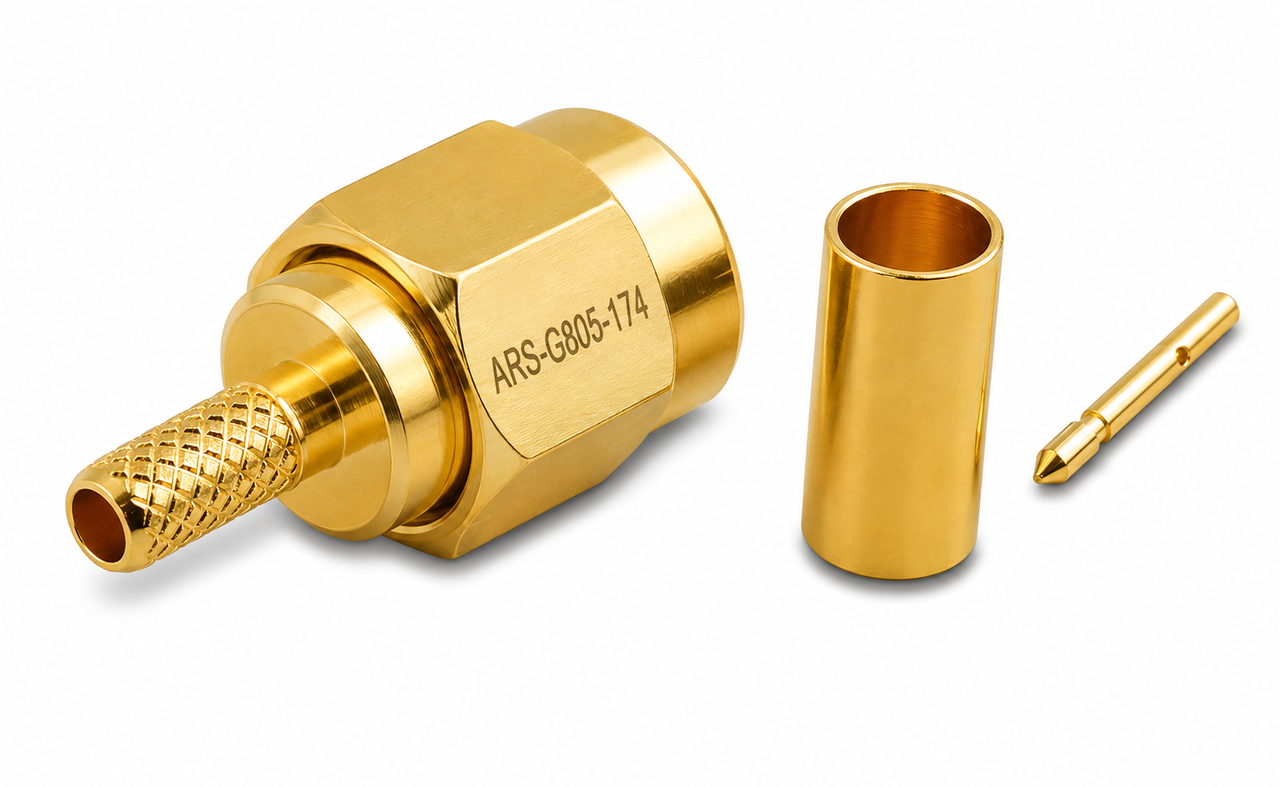

SMA Male Coaxial Connector for RG-174 & RG-316
The ARS-G805 - SMA Male Coaxial Connector is a precision, threaded RF connector designed for reliable 50-ohm coaxial cable connections in wireless communications, antennas, GPS, radio equipment, and RF test applications. Its compact SMA design provides secure threaded coupling and excellent high-frequency performance.
The SMA male connector uses a threaded coupling system for a secure, vibration-resistant connection. The 50-ohm configuration makes it suitable for a wide range of RF applications through the microwave frequency range.
Fits coaxial cables including RG-174, RG-316, LMR100, Belden 84316 and Belden 8216
Key Features
- Connector Type: SMA Male / SMA Plug
- Impedance: 50 Ohms
- Frequency Range: DC to 18 GHz
- Thread: 1/4"-36
- Coupling Nut: 5/16" hex
- Durability: Rated for 500+ mating cycles
- Construction: Precision-machined metal body
- Plating: Gold-plated contact surfaces
- Dielectric: PTFE insulator
- Cable Compatibility: RG-174, RG-316, LMR100, Belden 84316 and Belden 8216
Common Applications
- Wi-Fi and cellular antenna systems
- Mobile and handheld radios
- GPS and navigation equipment
- RF communication equipment
- Wireless networking equipment
- Antenna assemblies
- RF test and measurement equipment
- Coaxial cable repair and custom cable assemblies
