Product Description
UHF Female SO-239 to SMA Female RF Coaxial Adapter
The American Radio Supply ARS-G828 is a compact RF coaxial adapter designed to connect equipment with an SMA female jack to coaxial cables or equipment using a UHF female (SO-239) connection. This adapter provides a convenient way to interface different connector standards commonly found in amateur radio, two-way radio, scanner, antenna, and RF test applications.
The UHF Female SO-239 to SMA Female Adapter provides a simple and reliable solution for connecting RF equipment and coaxial components that use different connector standards. Its durable metal construction, knurled grip, and gold-plated center contact make it well suited for amateur radio, two-way radio, scanners, antennas, SDR equipment, RF testing, and general coaxial applications.
UHF connectors are commonly used in amateur and CB radio applications, while SMA connectors are widely used on compact RF equipment and handheld radios. This adapter is intended to provide a convenient mechanical and electrical interface between compatible 50-ohm RF components.
Note: Our black colored connectors are plated with either Black Nickel or Black Zinc Chromate. These electrolytic plating turn the surface black. This plating will provide corrosion resistance and maintain electrical conductivity with essentially no loss. This plating can be found in solar and space applications.
Key Features
- UHF Female (SO-239) to SMA Female
- 50-ohm RF coaxial configuration
- Precision-machined metal construction
- Nickel-plated brass alloy finish for durability
- Gold-plated center contacts for reliable electrical conductivity
- Knurled body provides a secure grip for installation
- Compact design for convenient field or bench use
- Ideal for adapting different RF connector standards
Common Applications
Amateur & Two-Way Radio:
Connect compatible SMA-equipped radio equipment to antenna systems and coaxial components using UHF/PL-259 connections.
Handheld Radios:
Useful when interfacing radios and accessories that use SMA connections with antenna systems employing standard UHF connectors.
Radio Scanners & Receivers:
Allows compatible SMA-equipped scanners, receivers, and SDR equipment to interface with UHF-based antenna cables and accessories.
RF Testing & Service:
Useful on test benches for connecting equipment with different RF connector types, including service monitors, dummy loads, antennas, and coaxial assemblies.

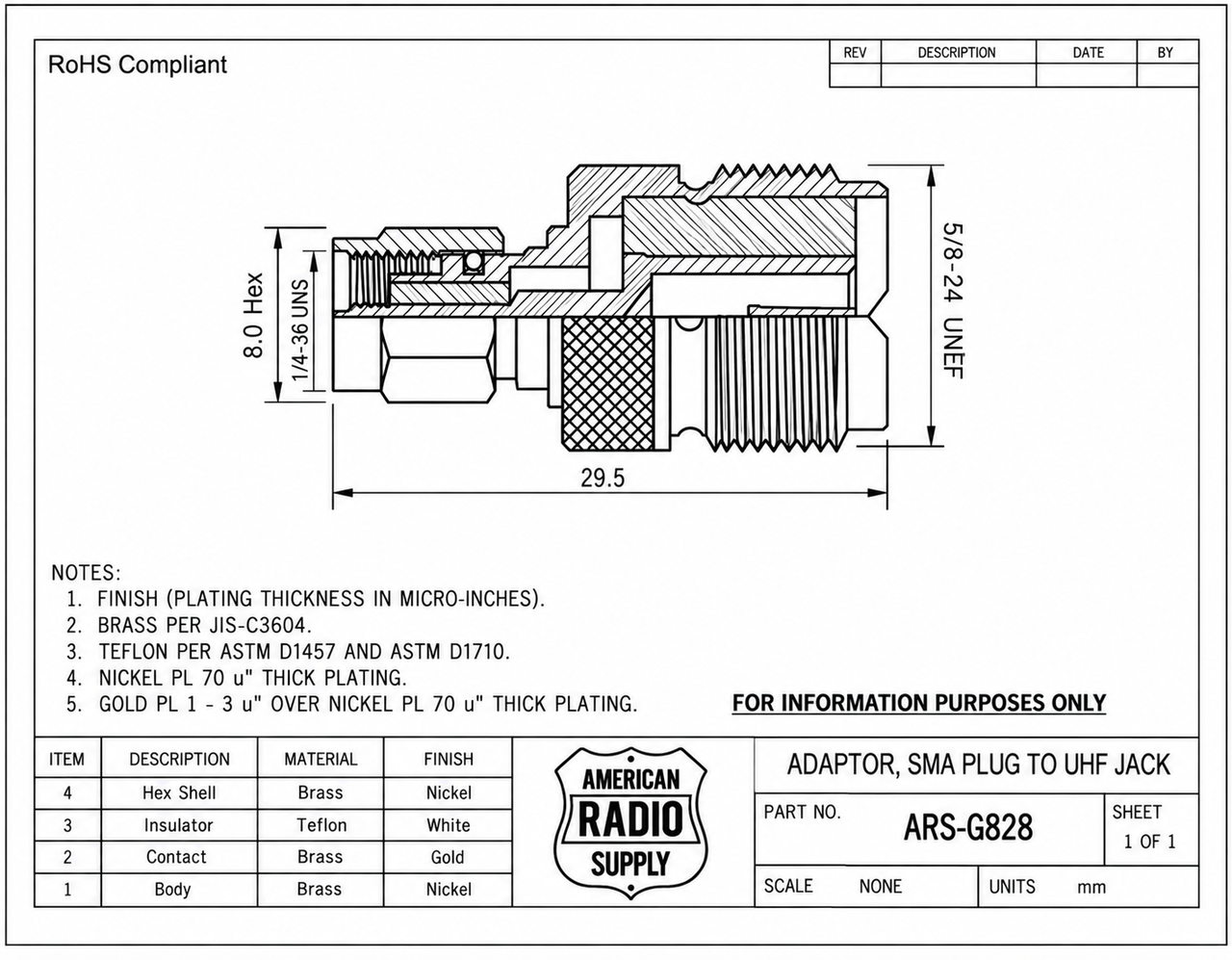

Specifications
Impedance: 50 Ohms
Frequency: DC to ~ 500 MHz *
Body: Nickel plated brass alloy
Contacts: Gold plated beryllium copper alloy
Configuration: Straight
* Limited by UHF side of the adapter
Other Details
See warranty details aboveProduct Videos
