Product Description
ARS-4915 - 0.200" Chrome Plated Brass Antenna Whip Base Ferrule 3/8-24T
The ARS-4915 is a heavy-duty .200-inch chrome-plated brass antenna whip base ferrule designed to securely terminate and mount stainless-steel whip or stinger elements. The ferrule provides a reliable mechanical connection between a raw antenna whip and a standard 3/8"-24T male threaded antenna mount.
The pass-through bore configuration allows a .200" diameter antenna element to slide through the ferrule and be secured with set screws. The threaded base installs directly into compatible mobile antenna mounts, springs, ball mounts, stud brackets, and other antenna hardware using a 3/8"-24 thread.
Key Features
- Part Number: ARS-4915
- Antenna Whip Size: .200
- Bore Configuration: Pass-through
- Bore Diameter: .200" (5.080 mm)
- Antenna Base Thread: 3/8"-24T male
- Body Material: Chrome-plated brass
- Fastener: Set screws
- Heavy-duty metal construction
- Corrosion-resistant chrome finish
- Secure mechanical retention of whip elements
- Standard 3/8"-24T mounting thread

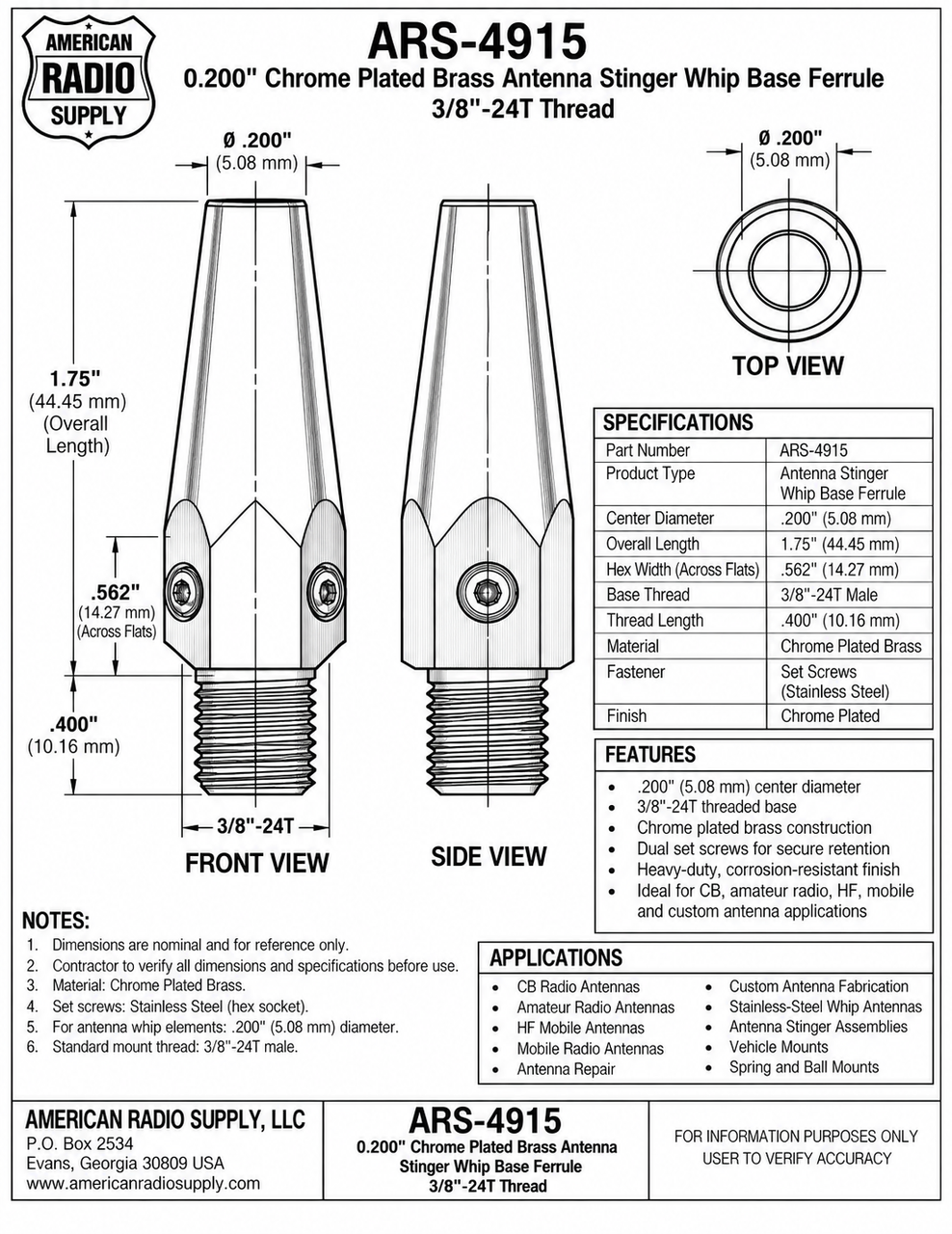

Specifications
| Part Number | ARS-4915 |
| Product Type | Antenna Stinger Whip Base Ferrule |
| Whip Diameter | .200" / 3.175 mm |
| Bore Type | Pass-through |
| Bore Diameter | 0.200" (5.080 mm) |
| Base Thread | 3/8"-24T Male |
| Material | Chrome-Plated Brass |
| Fastener | Set Screws |
| Finish | Chrome Plated |
| Applications | CB, Amateur Radio, HF & Mobile Antennas |
Applications
The ARS-4915-CB52 is suitable for:
- Radio antennas
- Amateur / Ham radio antennas
- HF mobile antennas
- Mobile radio antennas
- Stainless-steel whip antennas
- Antenna stinger assemblies
- Antenna repair
- Custom antenna fabrication
- Vehicle antenna mounts
- Spring and ball mount assemblies
Product Description
ARS-4915 – .200" Chrome-Plated Brass Antenna Stinger Whip Base Ferrule with 3/8"-24T Thread. Heavy-duty chrome-plated brass ferrule featuring a .100" pass-through bore for stainless-steel antenna whip or stinger elements. Includes set-screw retention and a standard 3/8"-24T male threaded base for connection to compatible antenna mounting hardware. Ideal for CB, amateur radio, HF, mobile radio, antenna repair, and custom antenna applications.
