Product Description

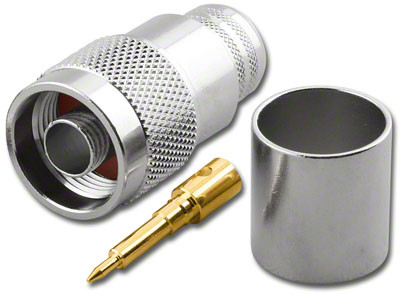

Type N Male Coaxial Crimp Connector LMR-400 Belden 9913
The RFN-3629-L400 is a professional Type N Male (RFN) coaxial crimp connector designed for terminating LMR-400 and other 0.405-inch, 50-ohm coaxial cables. This precision-machined connector provides a secure mechanical connection using a crimp-style ferrule and is well suited for antenna, wireless communications, RF, and test-equipment applications.
Key Features
- Type N Male (Plug)
- 50-Ohm impedance
- DC to 6 GHz
- Crimp-style termination
- Designed for LMR-400
- Compatible with RG-8, RG-213, LMR-400, and Belden 9913
- Silver-plated machined brass construction
- PTFE (Teflon) insulator
- Gold/silver-plated RF contact for reliable electrical performance
- Threaded Type N coupling for a secure connection
- Suitable for outdoor and demanding RF installations when properly installed
Applications
Amateur / Ham Radio:
Ideal for constructing custom-length antenna feedlines, jumpers, and transmission lines for VHF/UHF and other RF applications.
Wireless & Cellular Systems:
Used to connect LMR-400 coaxial cable to antennas, cellular boosters, amplifiers, base stations, and related wireless equipment.
DAS & Cellular Infrastructure:
Suitable for connecting RF equipment to donor and service antennas in distributed antenna systems and other communications installations.
RF Test & Measurement:
Useful for test cables and equipment requiring a reliable, low-loss 50-ohm Type N connection.
GPS & Antenna Systems:
Provides a robust threaded RF interface for low-loss coaxial cable assemblies.
Specifications
| Part Number | RFN-3629-L400 |
| Connector Type | Type N Male / Plug |
| Termination | Crimp |
| Impedance | 50 Ohms |
| Frequency Range | DC to 6 GHz |
| Cable Compatibility | LMR-400, RG-8, RG-213, Belden 9913, 7810A |
| Cable OD | Approx. 0.405 in. / 10.3 mm |
| Body Material | Machined Brass |
| Body Finish | Silver Plated |
| Insulator | PTFE (Teflon) |
| Center Contact | Plated RF Contact |
| Coupling | Threaded Type N |
| Connector Gender | Male |
| Configuration | Straight |
Construction & Performance
The RFN-3629-L400 is precision sized for 400-series coaxial cable and uses a crimp ferrule to provide secure retention of the cable braid and outer jacket. The PTFE dielectric provides stable insulation characteristics, while the silver-plated machined-brass construction offers excellent conductivity and corrosion resistance.
When correctly installed with the appropriate cable-preparation dimensions and crimp tooling, the connector provides a durable RF termination suitable for professional coaxial cable assemblies.
Important Compatibility Note
This connector is specifically intended for LMR-400 and dimensionally compatible 0.405-inch coaxial cables. Although RG-8, RG-213, and Belden 9913 are commonly grouped with 400-series cables, cable dimensions can vary by manufacturer; verify the cable's actual outside diameter, dielectric dimensions, and connector compatibility before installation.
RFN-3629-L400 — Type N Male Crimp Plug for LMR-400, RG-8, RG-213 & Belden 9913 | 50 Ohm | DC–6 GHz | Silver-Plated Machined Brass | PTFE Insulator
