Product Description

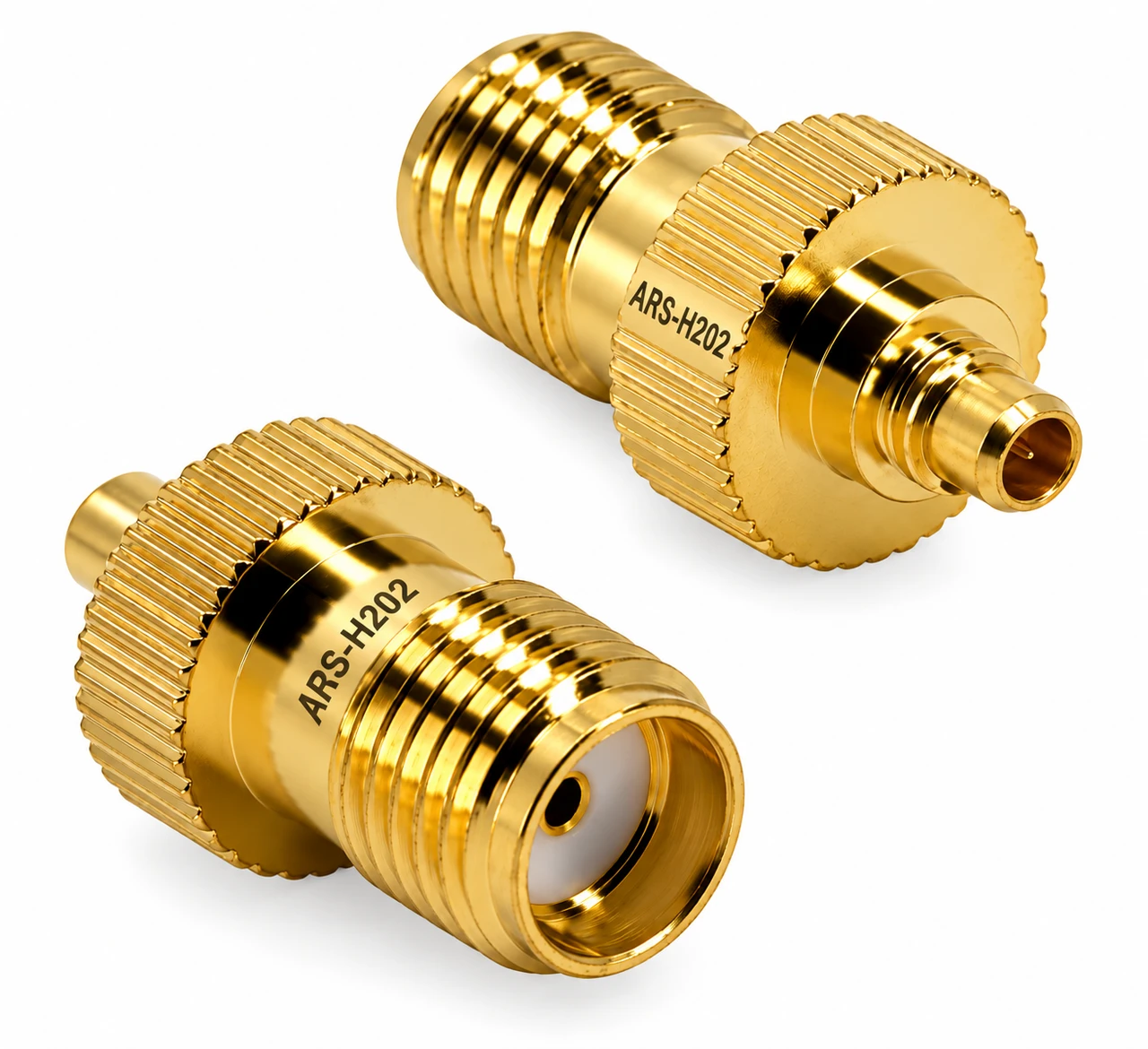

ARS-H202 - MMCX Plug to SMA Female Coaxial Adapter
The ARS-H202 - MMCX Male to SMA Female Coaxial Adapter provides a convenient way to connect equipment using a miniature MMCX RF interface to devices, antennas, cables, and test equipment equipped with a standard SMA interface. This compact adapter eliminates the need for cable modification or soldering while maintaining a reliable 50-ohm RF connection.
Product Features
- MMCX Male Plug to SMA Female Jack
- 50 Ohm impedance for standard RF applications
- MMCX snap-on mating interface for quick connection and disconnection
- SMA female threaded interface for secure screw-on connections
- DC to 6 GHz frequency range
- Compact, lightweight design for space-constrained applications
- Gold-plated brass construction for durability and corrosion resistance
- Precision-machined construction for dependable RF performance
- Ideal for adapting miniature coaxial connections to standard SMA equipment
Common Applications
- FPV Drones & Video Systems – Connects miniature MMCX-equipped video transmitters and receivers to standard SMA antennas and coaxial cables.
- Wi-Fi & IoT Equipment – Provides an interface between compact wireless modules and external antennas or test equipment.
- GPS & Navigation Systems – Useful for connecting miniature RF/GPS modules to standard SMA-connected antennas and cables.
- Software Defined Radio (SDR) – Adapts small receiver boards and RF modules to standard laboratory coaxial cables and equipment.
- RF Testing & Development – Convenient adapter for prototyping, troubleshooting, antenna testing, and RF bench work.
Specifications
| Part Number | ARS-H202 |
| Adapter Type | MMCX Male to SMA Female |
| MMCX Interface | Male Plug, Snap-On |
| SMA Interface | Female Jack, Threaded |
| Impedance | 50 Ohms |
| Frequency Range | DC – 6 GHz |
| Body Material | Brass |
| Finish | Gold Plated |
| Connection Method | Snap-On / Screw-On |
| Application | RF, Wireless, GPS, Wi-Fi, SDR, Antenna |
The ARS-H202 makes it easy to integrate equipment with different RF connector types. The MMCX male side provides a compact snap-on connection, while the SMA female side accepts standard SMA male connectors. Its small form factor makes it particularly useful where space is limited and a direct connector-to-connector conversion is required.
