Type N Male to Type N Female Coaxial Connector Saver
Product Description

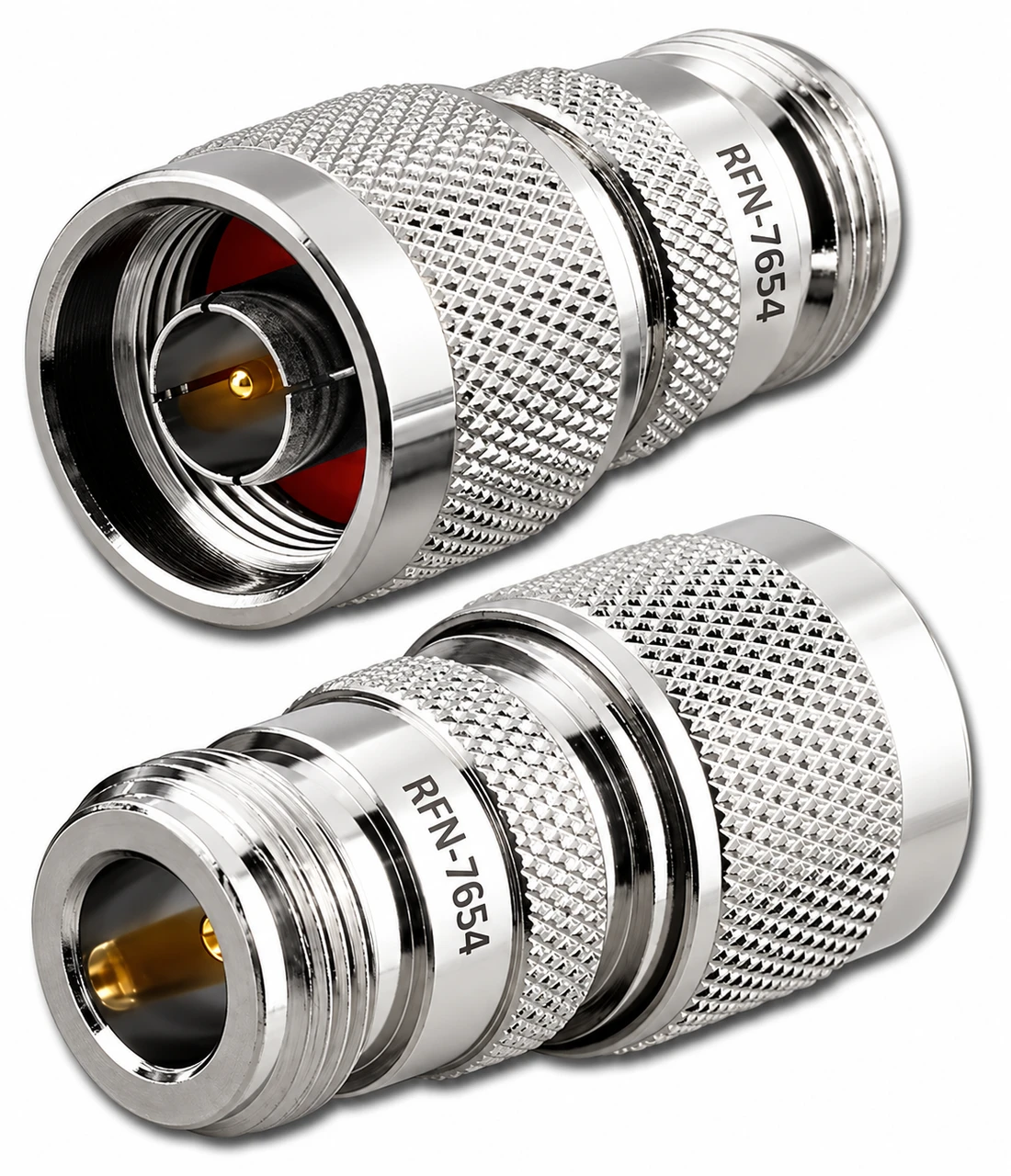

Protect valuable RF equipment with the RFN-7654 Type N Male to Type N Female Connector Saver from American Radio Supply. Designed to serve as a sacrificial interface between frequently connected coaxial cables and equipment ports, this straight-through adapter helps reduce wear on expensive RF connectors caused by repeated mating and disconnection.
Featuring a durable nickel-plated brass body, a Delrin dielectric, and gold-plated beryllium copper contacts, the RFN-7654 provides a robust mechanical connection for 50-ohm RF systems. Its threaded Type N interface offers secure coupling for compatible radios, antenna systems, wireless equipment, and RF test setups.
Install the connector saver on a frequently accessed equipment port and connect compatible cables to the adapter. Replacing a worn connector saver is generally simpler and less costly than repairing or replacing a damaged equipment connector.
Key Features
-
Equipment Port Protection: Helps minimize wear to frequently used Type N equipment connections.
-
50-Ohm Impedance: Designed for nominal 50-ohm RF coaxial systems.
-
Wide Frequency Coverage: DC to 12 GHz (typical), as specified for this product.
-
Low-Reflection Performance: Typical VSWR of ≤ 1.5:1.
-
Nickel-Plated Brass Body: Durable metallic construction with a corrosion-resistant finish.
-
Gold-Plated BeCu Contacts: Beryllium copper contacts with gold plating for reliable electrical contact.
-
Delrin Dielectric: Provides electrical insulation between the center and outer conductors.
-
Straight Adapter Configuration: Connects compatible Type N male and Type N female interfaces.
-
Compact Design: Approximately 39.0 mm (1.54 inches) overall length, according to the supplied drawing.
Technical Specifications
| Part Number | RFN-7654 |
| Product Type | Type N Connector Saver |
| Connector Configuration | Type N Male to Type N Female |
| Impedance | 50 Ohms |
| Frequency Range | DC to 12 GHz (Typical) |
| VSWR | Typical ≤ 1.5:1 |
| Body Material | Brass |
| Body Finish | Nickel Plated |
| Contact Material | Beryllium Copper (BeCu) |
| Contact Finish | Gold Plated |
| Dielectric Material | Delrin |
| Overall Length | 39.0 mm (1.54 in), approximate |
| Connector Coupling | Threaded |
| Thread Specification | 5/8"-24 UNEF, per supplied drawing |
| Adapter Style | Straight |
| Weatherproof Rating | Not specified |
| Mating-Cycle Rating | Not specified |
Typical Applications
-
Spectrum analyzers and network analyzers
-
RF signal generators and test equipment
-
Two-way radios and base stations
-
Wireless communications infrastructure
-
Antenna feed systems and coaxial cable assemblies
-
Broadcast and telecommunications equipment
-
RF engineering laboratories, production test benches, and field service kits
Installation Notes
-
Confirm that the equipment port and mating cable use compatible 50-ohm Type N interfaces.
-
Thread the connector saver onto the equipment port carefully, avoiding cross-threading.
-
Secure the connection according to the equipment manufacturer's recommended coupling procedure.
-
Inspect the adapter periodically for worn threads, damaged contacts, or other signs of deterioration.
Important: The connector saver is intended to reduce mechanical wear; it does not eliminate connector wear or guarantee protection against damage. The specified 12 GHz frequency range and typical VSWR should be verified against the requirements of the intended RF system. Weatherproofing and environmental sealing are not specified for this model.
