Product Description

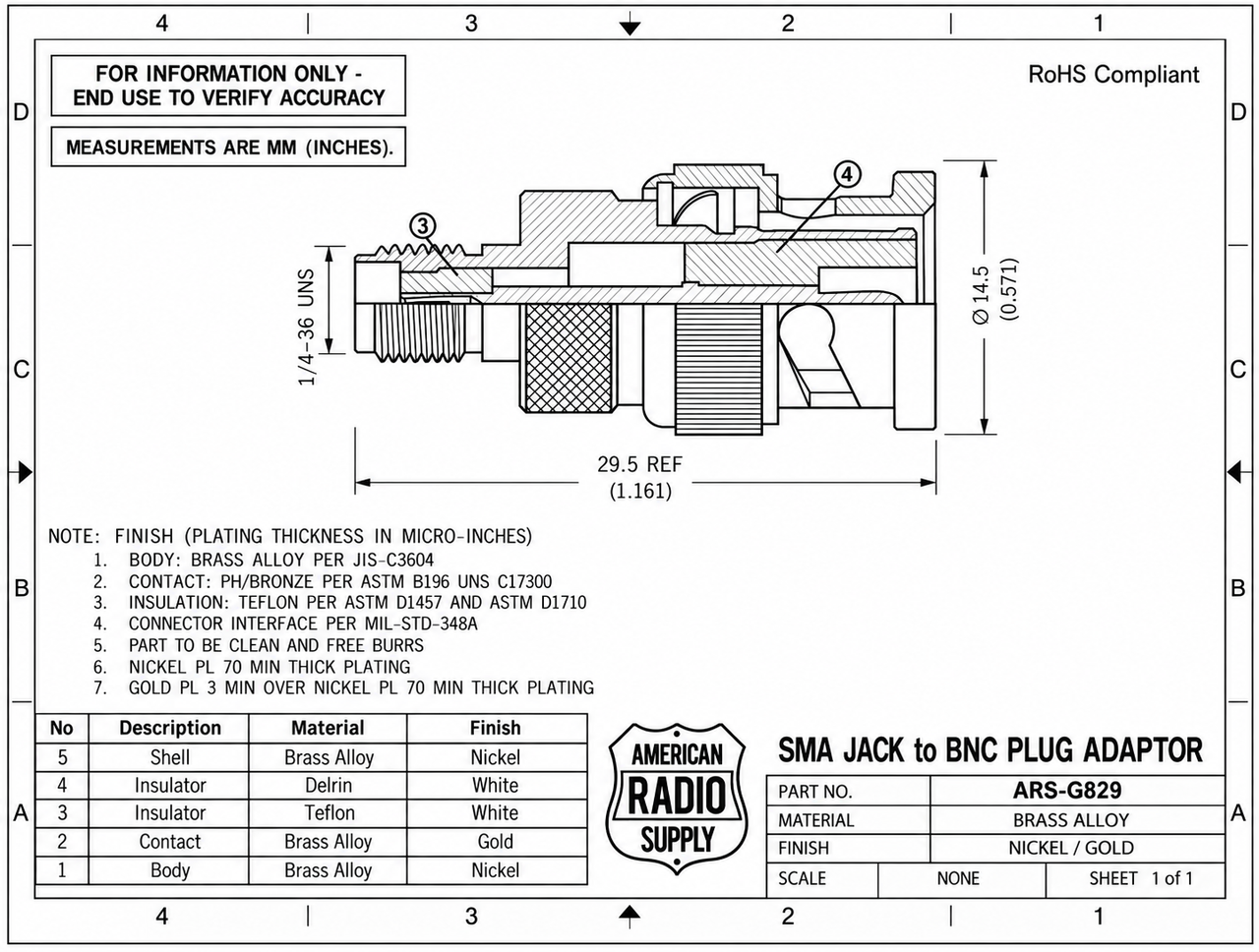

ARS-G829 – BNC Male to SMA Female Coaxial Adapter
The ARS-G829 - BNC Male to SMA Female Coaxial Adapter provides a convenient way to connect RF equipment, cables, and antennas using different connector standards. It features a BNC male plug with a bayonet locking interface and an SMA female jack with a threaded interface, making it useful for a wide range of 50-ohm RF applications.
Ideal for two-way radios, scanners, transceivers, test equipment, signal generators, oscilloscopes, SDR equipment, and amateur radio applications, the ARS-G829 can also serve as a practical port-saver where equipment is frequently connected and disconnected.
General Specifications
- Part Number: ARS-G829
- Connector 1: BNC Male Plug
- Connector 2: SMA Female Jack
- Impedance: 50 Ohms
- Frequency Range: DC to 4 GHz
- Body: Nickel-Plated Brass Alloy
- Center Contact: Gold-Plated Beryllium Copper
- Application: RF, Wireless, Test Equipment, SDR & Amateur Radio
- Connection Type: BNC Bayonet to SMA Threaded
