Product Description

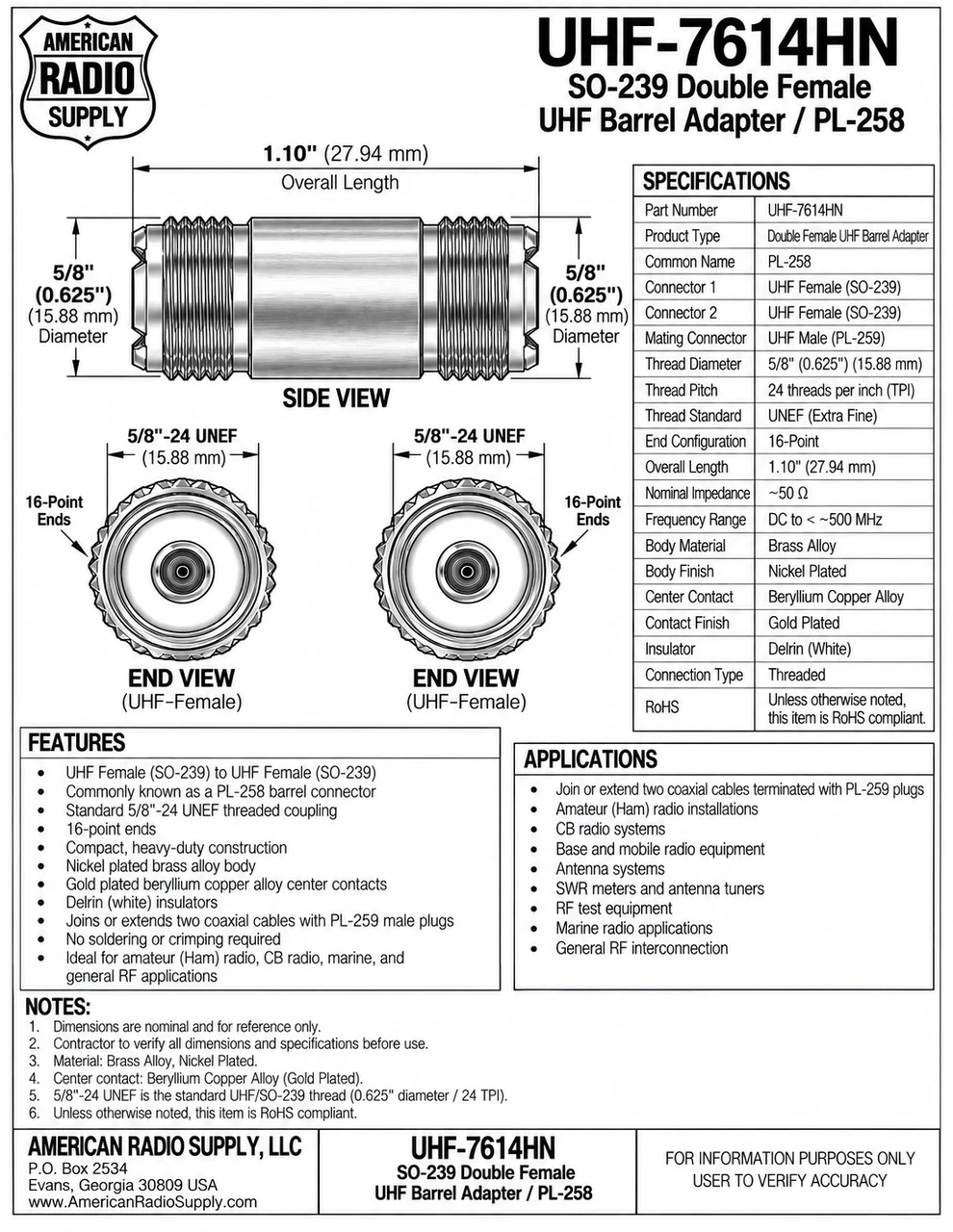

SO-239 - Double UHF Female Barrel Adapter Connector Coupler
The UHF-7614HN is a heavy-duty UHF Female-to-Female (SO-239) barrel adapter, commonly known as a PL-258, designed to join two coaxial cables terminated with UHF Male PL-259 connectors. Its compact inline configuration provides a convenient way to extend coaxial cable runs, connect radio equipment, or join existing UHF coaxial assemblies without replacing the cable.
Key Features
- Part Number: UHF-7614HN
- Connector Configuration: UHF Female–Female
- Connector Type: SO-239 / UHF Female
- Common Name: PL-258 Double Female Barrel Adapter
- Mating Connectors: UHF Male / PL-259
- Thread: 5/8"-24T UNEF
- Thread Diameter: 5/8" (~16 mm)
- Thread Pitch: 24 threads per inch (TPI)
- Ends: 16-point hex-style ends
- Overall Length: 1.10" (~28 mm)
- Nominal Impedance: ~50 Ω
- Frequency Range: DC to approximately 300–500 MHz*
- Body Material: Nickel-plated brass alloy
- Contact Material: Gold-plated beryllium copper alloy
- Connection: Threaded screw-on coupling
- RoHS: Unless otherwise noted, this item is RoHS compliant
Product Description
The UHF-7614HN Double Female SO-239 Barrel Adapter provides a straightforward method for connecting two coaxial cables equipped with PL-259 male connectors. Also known as a PL-258, this straight-through UHF adapter features an SO-239 female connection at each end and standard 5/8"-24 UNEF coupling threads.
The compact 1.10-inch overall length and 16-point ends make the adapter convenient for installation, service, testing, and cable-extension applications where a dependable inline UHF connection is required.
Construction
The connector body is manufactured from brass alloy with a nickel-plated finish, providing a durable exterior and corrosion-resistant surface. The internal gold-plated beryllium copper alloy contacts provide a conductive contact interface and are well suited for repeated mating and general RF service.
Technical Specifications
| Part Number | UHF-7614HN |
| Product Type | Double Female UHF Barrel Adapter |
| Common Name | PL-258 |
| Connector 1 | UHF Female / SO-239 |
| Connector 2 | UHF Female / SO-239 |
| Mating Connector | UHF Male / PL-259 |
| Thread Diameter | 5/8" (~16 mm) |
| Thread Pitch | 24 TPI |
| Thread Standard | 5/8"-24 UNEF |
| End Configuration | 16-point |
| Overall Length | 1.10" (~28 mm) |
| Nominal Impedance | ~50 Ω |
| Frequency Range | DC to ~< 500 MHz* |
| Body Material | Brass Alloy |
| Body Finish | Nickel Plated |
| Contact Material | Beryllium Copper Alloy |
| Contact Finish | Gold Plated |
| Connection Type | Threaded |
| RoHS | Compliant unless otherwise noted |
Common Applications
- Amateur / Ham Radio
- CB Radio
- Mobile Radio
- Base Station Radio
- Antenna Systems
- Coaxial Cable Extensions
- Coaxial Cable Assemblies
- SWR Meters
- Antenna Tuners
- RF Test Equipment
- Communications Equipment
- Marine Radio Applications
- General RF Interconnection
Simple Coax Extension
The UHF-7614HN is especially useful when two cables both have PL-259 male connectors. Thread one PL-259 onto each SO-239 end of the adapter to create a secure inline connection and extend the overall coaxial cable run.
RF Performance Note
*UHF connectors are traditionally non-constant-impedance connectors, so actual RF performance can vary with frequency, connector geometry, cable type, and mating components. The UHF-7614HN is intended primarily for HF and lower-frequency VHF/UHF applications; specialized controlled-impedance connectors may be preferable for higher-frequency or microwave applications.
